Product Description：

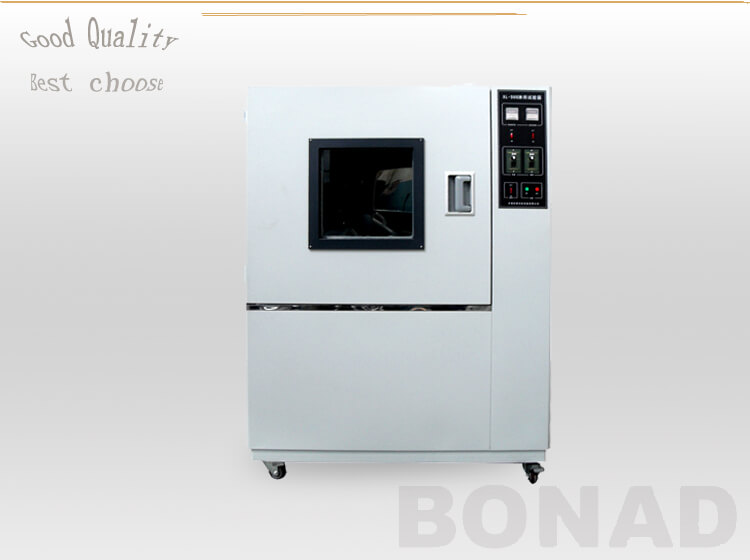

Name：Rain water spray test chamber for waterproof test
Type：BND-HLY
Purpose:
This product is applicable for the outer protection test of exterior lighting, signal devices and car lamps.
Chamber Structure:
1,This product can imitating nature typical environmental conditions beyond the limitation of time and season.It is able to save a lot of human and financial resources,also research grant when using the simulative environment instead.The test has the property of acceleration which can cut the period down.
2,This priduct can be able to adapt to test requirements for long-term, stable, safe, and reliable with its appropriate design and advanced product and components.It has simple operation and convenient to install,handle and Maintenan.
3,The inner bladder of the equipment have adopted high-quality stainless steel on the hull. With a large area of glass observation window, it has a beautiful appearance.It have adopted stainless steel material both the pipe and Swing table,. It has safety protection function .
model | BND-LY-800 | BND-LY-1000 | |
workroom size(D×W×H)mm | 800×800×800 | 1000×1000×1000 | |
technical index and material | Spraying Hole Diameter | Φ0.8 Φ0.4 Aperture Spacing 50mm | |
flow | 0.067-0.074L/min(optional) | ||
Water Pipe Diamete | Φ15~20mm | ||
Test Bench Rotation Speed | 5~17r/min(Stepless-speed) | ||
Swing Range | ±45°,±60°,±90°,±180° | ||
The level of pipe | 800mm | ||
water pressure | 80-400kPa(optional) | ||
