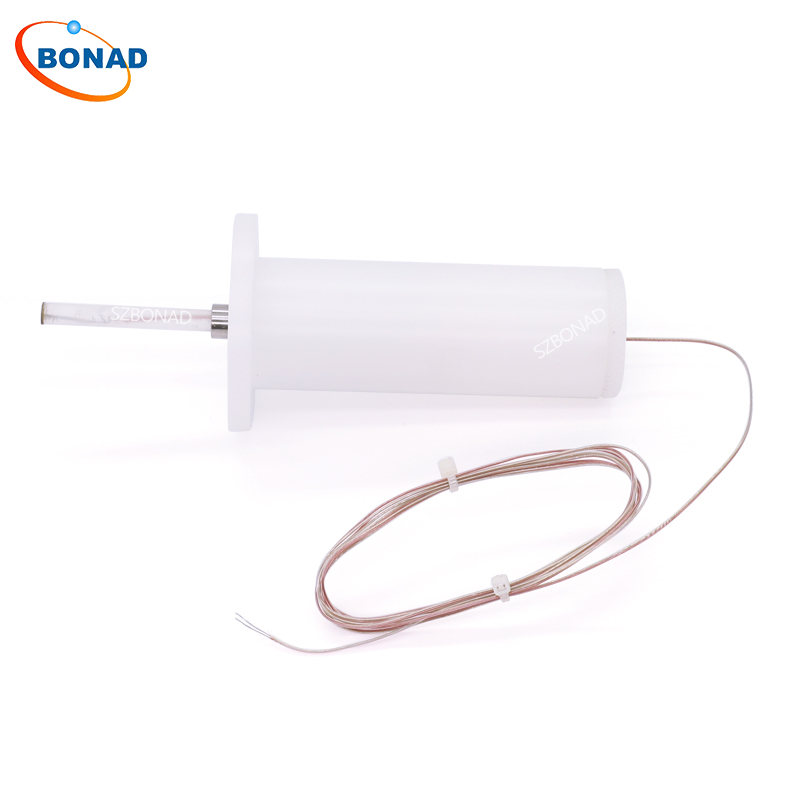

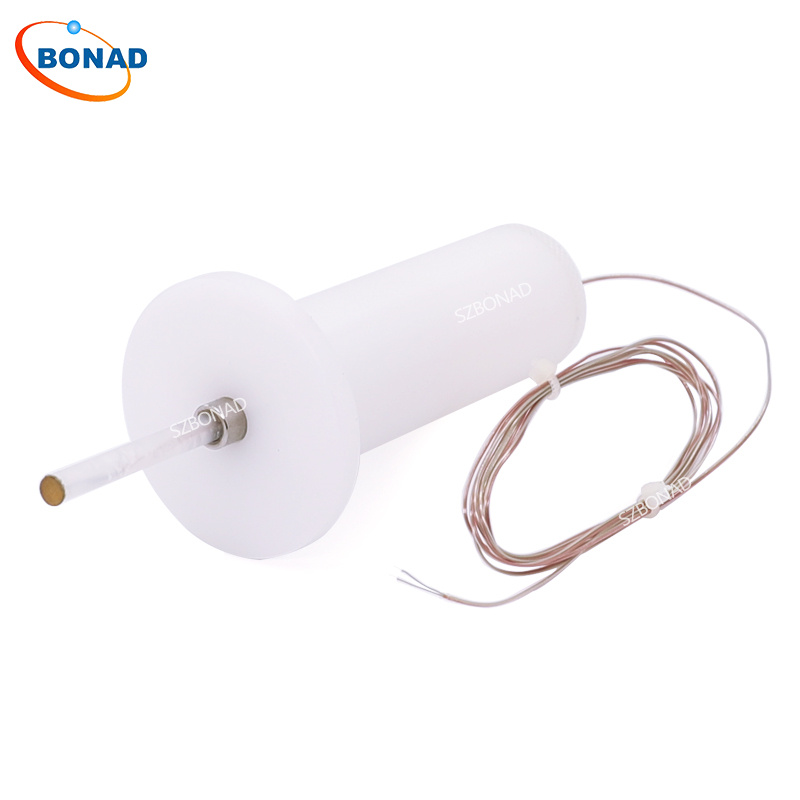

IEC60335 test Probe for measuring surface temperatures

Product Description：

IEC60335-2-11:2003 Figure 101 - Probe for Measuring Surface Temperaturs

Model:BND-WZ

Description:

This test probe for measurement of surface temperature is designed and manufactured according to IEC60035-2-6 Figure 104 and IEC60335-2-11:2003 Figure 101 standard and similar other international standards.

This probe is mainly used for test and inspection the temperature rise accessible ability of front and side electric stove and oven.The probe for measurement of surface temperature has a 4N thrust in accordance with the standards requirements.

IEC60335-2-11:2003 Figure 101/IEC60035-2-6 Figure 104 - Probe for Measuring Surface Temperatures

A) Adhesive

B) Thermocouple wires 0.3 mm diameter to IEC 60584-1 Type K(chrome alumel)

C) Handle arrangement permitting a contact force of 4 N ± 1 N

D) Polycarbonate tube: inside diameter 3 mm, outside diameter 5mm

E) Tinned copper disc: 5 mm diameter; 0.5 mm thick Note: The contact face of the disc is to be flat.
