IEC61032 Test Probe 31(Ground Probe)BND-31

Product Description：

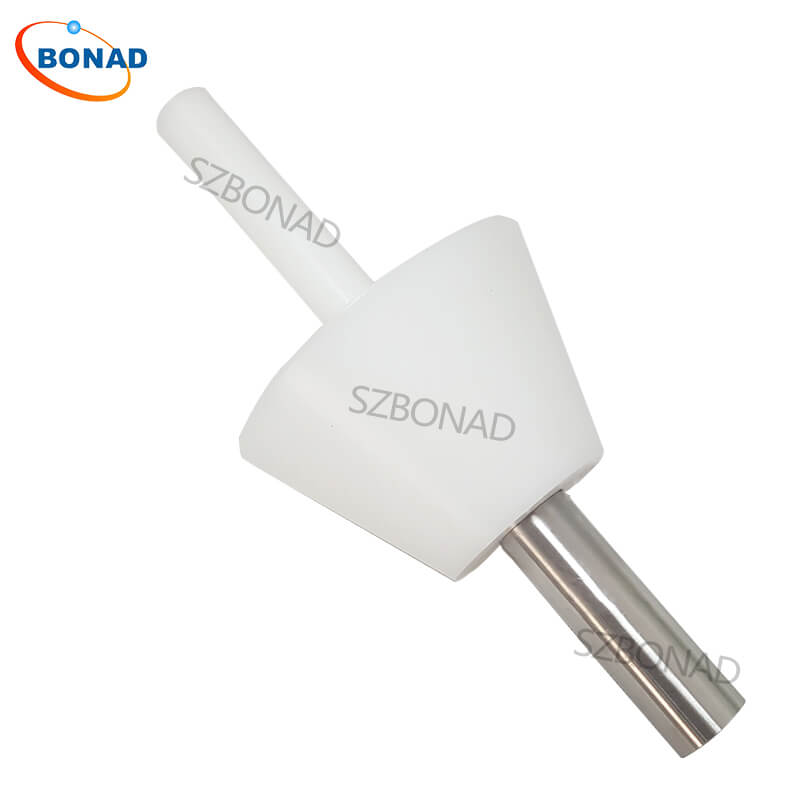

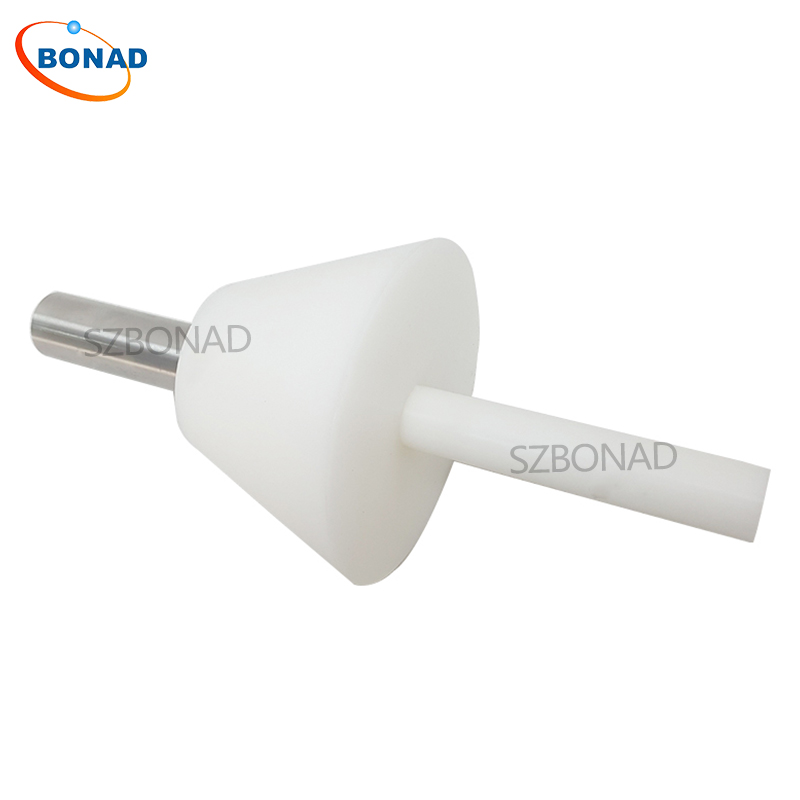

Test Probe 31(Ground Probe)

Specification

Test Probe 31(Ground Probe)

1, According to : IEC61032-1997 and GB / 1997-16842 (figure 14)

2, The Test Probe 31(Ground Probe) is mainly used to check the hazardous machinery parts of the residual food dealing devices’ grinding system whether can be touched .

Technical Parameters:

1, Rod Diameter: Φ25±0.2 mm

2, Rod Length: 80±0.2 mm

3, Plate Former Diameter: Φ60±0.2 mm

4, Plate Back Diameter: Φ110±0.2 mm

5, Total Length: 150±0.2 mm

6, Referance standards: IEC61032:1997 and GB / 16842-2008 (figure 14)
