Product Description：
Name：AS/NZS3112 / BS1363-2 / VDE0620 Australian New Zealand Plug Socket Gauge
Type：AS-NZS3112
1. Application:
Our company offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GBDIN, VDE and other similar international standards.
Such standards require the checking of size & definition etc, these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60HRC and a roughness according to standard require.

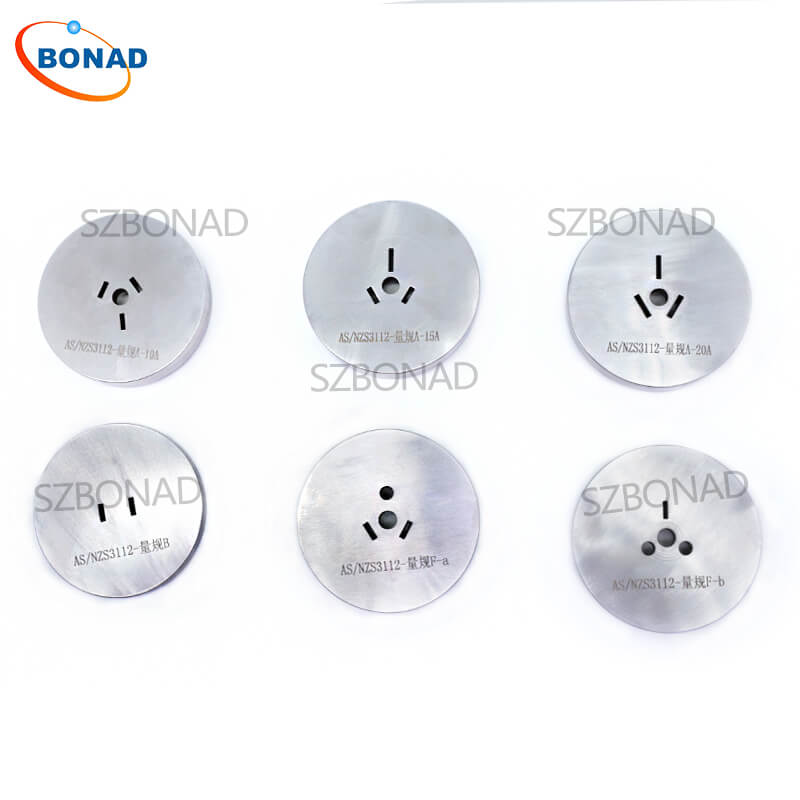

Australia plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of AS/NZS 3112 figure A, B, C, D, E, F, G size, amount in 9pcs.
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Standard: AS/NZS3112, BS1363-2, VDE0620-1:2010-02, GB1002, GB1003 etc.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;
Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
3. Quantity:
| 1 | AS/NZS3112-Figure 2.5 | Pressure test apparatus for insulation on insulated plug pins at high temperature |
| 2 | AS/NZS3112-Figure 2.6 | Impact test apparatus for insulation on insulated plug pins at low temperature |
| 3 | AS/NZS3112-Figure 2.9 | Temperature rise testing box |
| 4 | AS/NZS3112-Figure 2.10 | Copper of temperature rise testing |
| 5 | AS/NZS3112-Figure 2.8 | Plug bending test device |
| 6 | AS/NZS3112-Figure 3.1 a.b.c | Gauge for depth of no-contact test |
| 7 | AS/NZS3112-Figure 3.6 | Device for checking the resistance to lateral strain (three pin gauge) |
| 8 | AS/NZS3112-Figure 3.7 | Device for checking the resistance to lateral strain (two pin gauge) |
| 9 | AS/NZS3112 figure A1 | Gauge for three-pin 250 v max flat-pin plugs |
| 10 | AS/NZS3112 figure B1 | Gauge for two-pin flat-pin 125 v max. plugs (with parallel pins) |
| 11 | AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. |
| 12 | AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test . |
| 13 | AS/NZS3112 figure F1 | Plugs and socket-outlets for use in extra-low voltage circuits |
| 14 | AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test |
| 15 | AS/NZS3112-2.13.9.1 | 18N Australia plug testing device |
| 16 | AS/NZS3112 Item 3.3.4.1 | Test gauge of Minimum Pullout force |
| 17 | AS/NZS3112 Item 2.3.2 /figure 2.3 | No go gauge of socket aperture |
| 18 | AS/NZS3112 Item 3.14.8.2/figure 2.1(a),(b),(c) | Plug of socket temperature rise testing |
| 19 | AS/NZS3112 Item 2.8.1 | Test pin of distance testing gauge |
