Product Description：
Name：BS1363 Figure 1 Test pin plug and socket gauges
Type：BND-BS1FIG1
| No. | Product name | standard | Quantity |

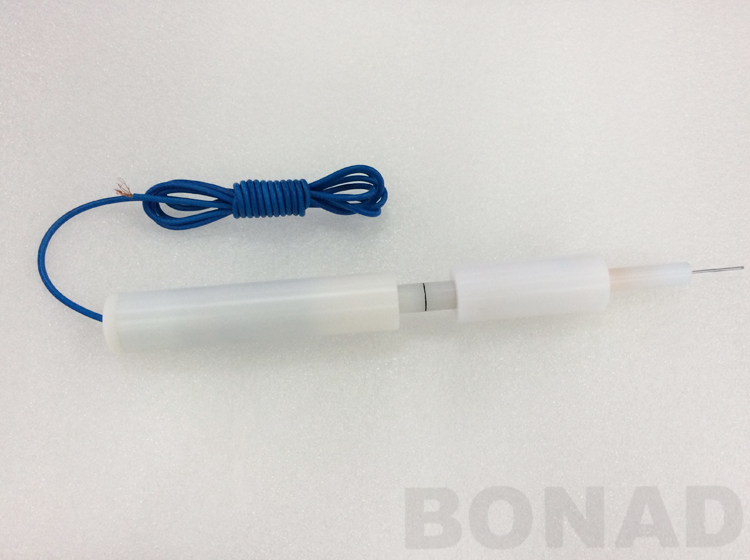

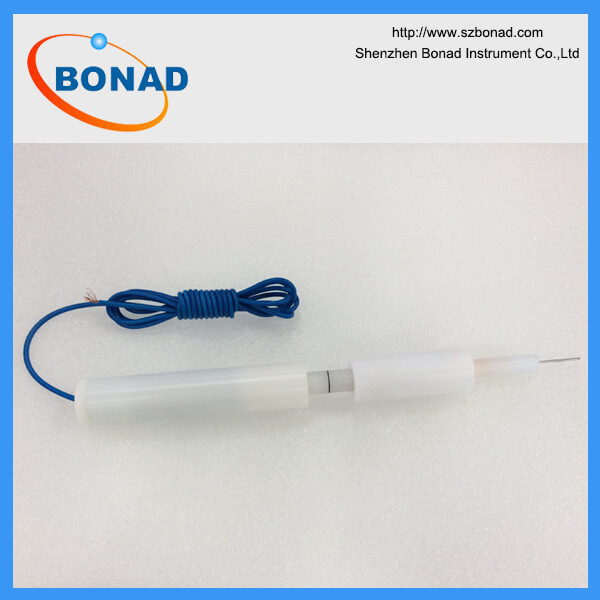

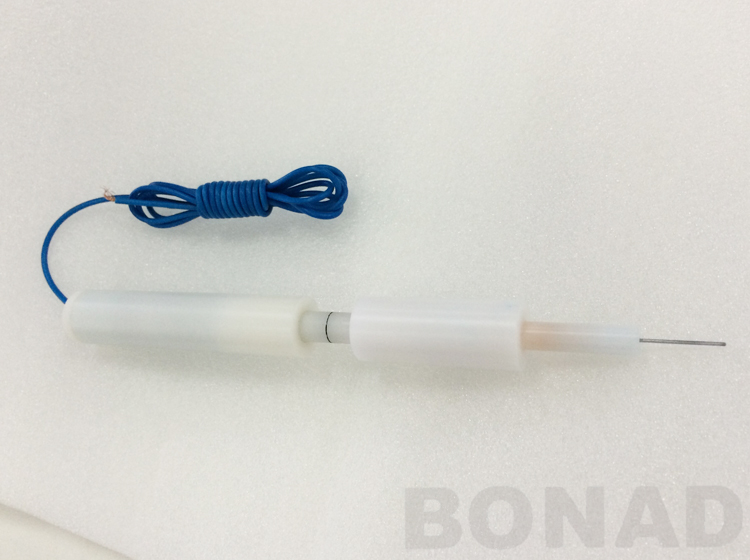

| 1 | Figure 1 — Test pin | BS1363-2-Fig1 | 1 |
| 2 |
2a)Apparatus for mechanical strength test on resilient covers 2b)Hardwood block for Figure 2a) |
BS1363-2-Fig2 | 2 |
| 3 | Figure 11 — Go gauge for socket-outlet | BS1363-2-Fig11max/min | 2 |
| 4 | Figure 12 — Contact test gauge | BS1363-2-Fig12 | 1 |
| 5 | Figure 13 — Test apparatus and circuit for use with contact and non-contact gauges |
BS1363-2-Fig13 |
1 |
| 6 | Figure 14 — Non-contact test gauge | BS1363-2-Fig14 | 1 |
| 7 | Figure 15 — Turning moment gauge | BS1363-2-Fig15 | 1 |
| 8 | Figure 16 — Withdrawal pull gauges for effectiveness of contact | BS1363-2-Fig16a/b | 2 |
| 9 | Figure 18 — Apparatus for flexing test | BS1363-2-Fig18 | 1 |
| 10 | Figure 19 — Solid link for test on fuse clips | BS1363-2-Fig19 | 1 |
| 11 | Figure 20 — Tumbling barre | BS1363-2-Fig20 | 1 |
| 12 | Figure 21 — Pendulum impact test | BS1363-2-Fig21 | 1 |
| 13 | Figure 22 — Arrangements for mechanical strength test for portable socket-outlets | BS1363-2-Fig22 | 1 |
| 14 | Figure 23 — Apparatus for pressure test | BS1363-2-Fig23 | 1 |
| 15 | Figure 24 — Apparatus for ball pressure test | BS1363-2-Fig24 | 1 |
| 16 | Figure 28 — Calibrated link | BS1363-2-Fig28 | 1 |
| 17 | Figure 29 — Calibration jig for calibrated link | BS1363-2-Fig29 | 1 |
| 18 | Figure 30 — Test plug for temperature rise | BS1363-2-Fig30 | 1 |
BS1363-2 Plugs and socket gauges
